Pop Rivets
Bags of 100 include a 13/64″ drill bit.

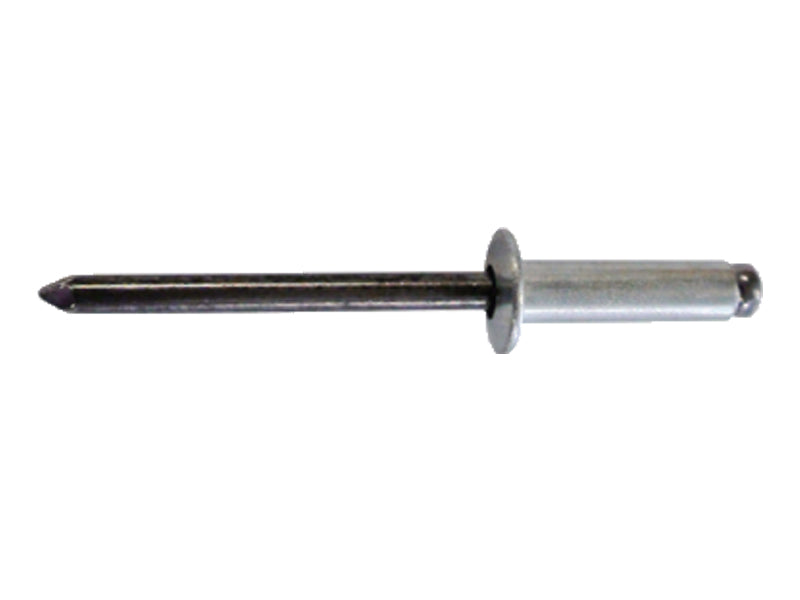

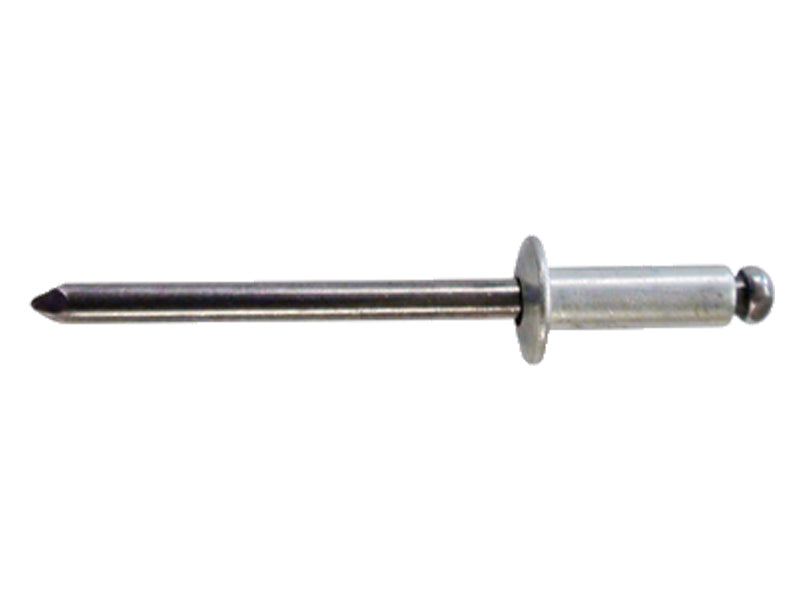

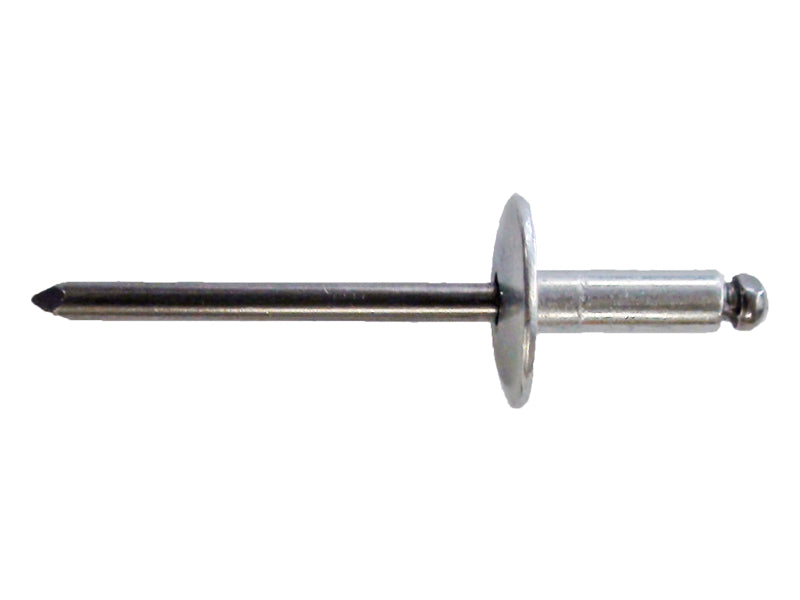

Size 66 Short – comes in small and large head options
Small head – length is .562″, head diameter is .370″ and shaft diameter is .185″large head; length is .562″, head diameter is .625″ and shaft diameter is .185″

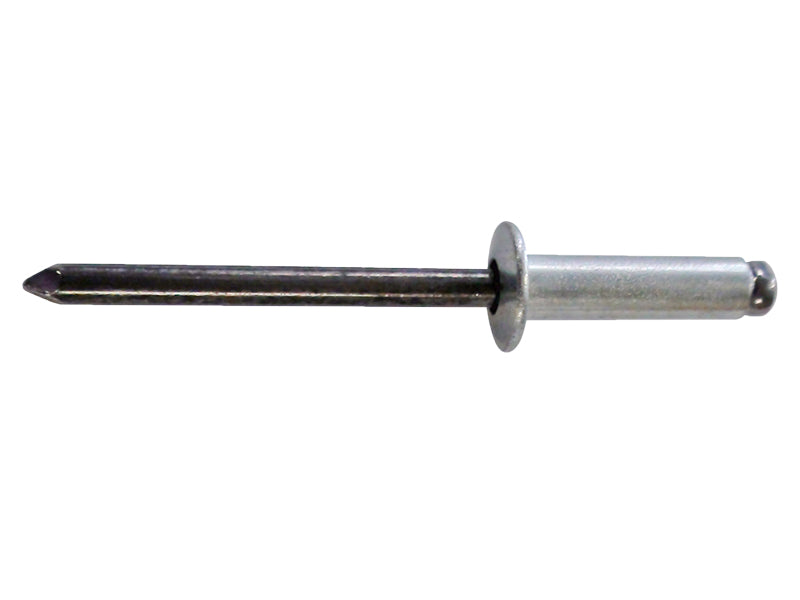

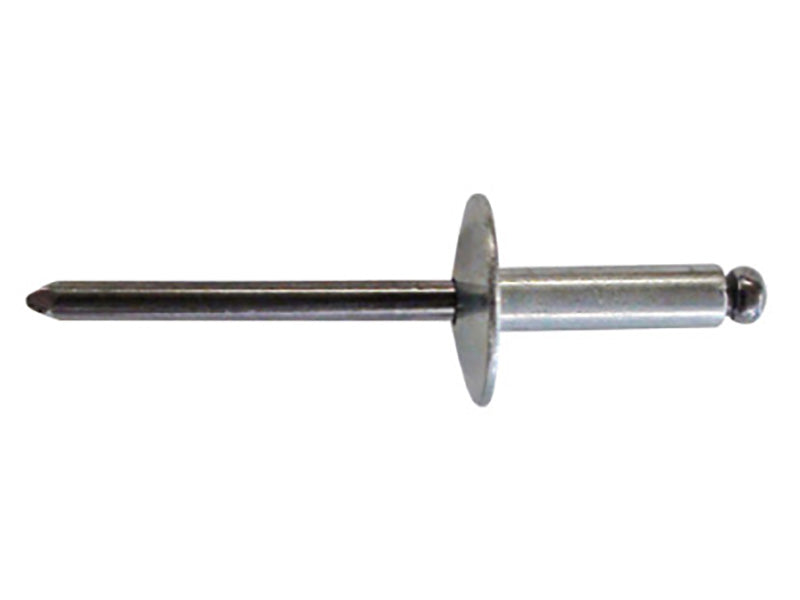

Size 68 Long – comes in small and large head options
Small head – length is .688″, head diameter is .370″ and shaft diameter is .185″large head; length is .688″, head diameter is .625″ and shaft diameter is .185″
Size 86 Short – comes in small head option only
Small head – length is .620″, head diameter is .50″ and shaft diameter is .250″

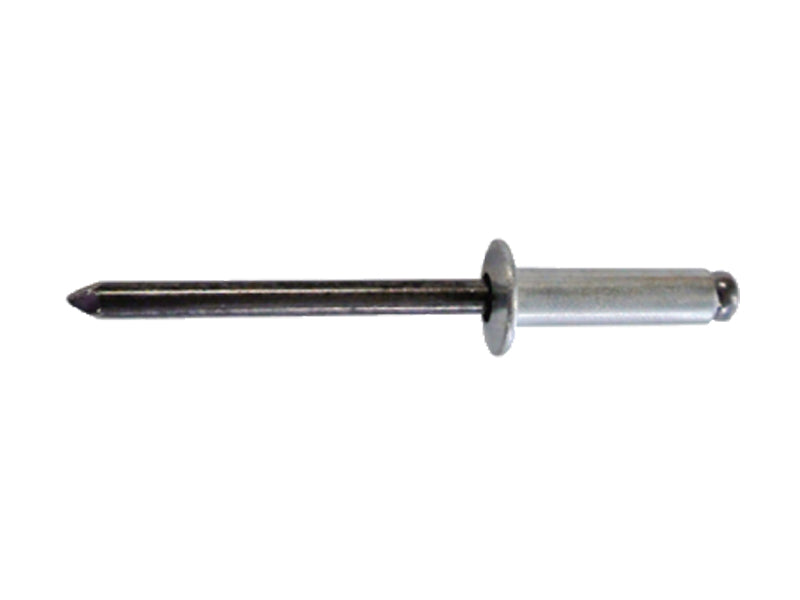

Size 88 Long – comes in small head option only
Small head – length is .75″, head diameter is .50″ and shaft diameter is .250″

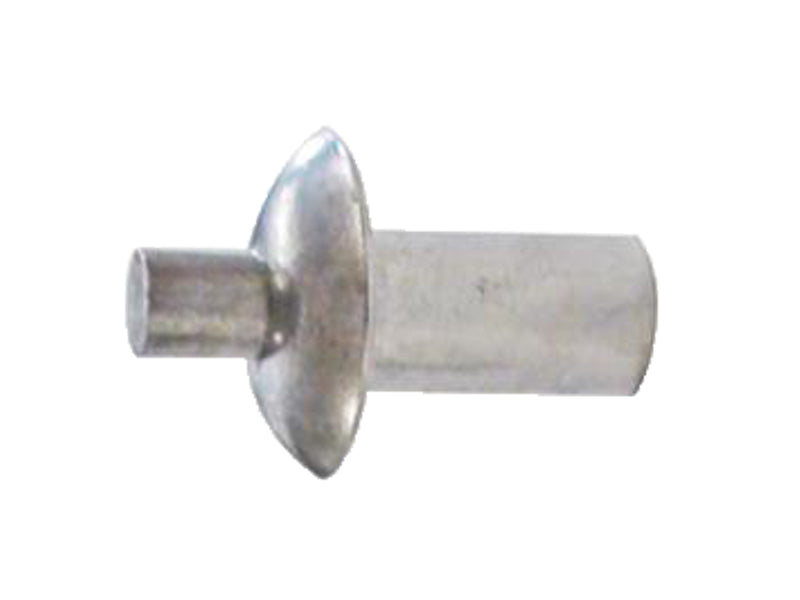

Pound Rivets
Pound Rivets, also known as hammer rivets or drive-in rivets, come in three sizes:
10-16 Short – length is .469, Grip Range is .266 – .359, head size is .500 (1.2″), shaft size is .25 (1.4″) and 38-108-10-16

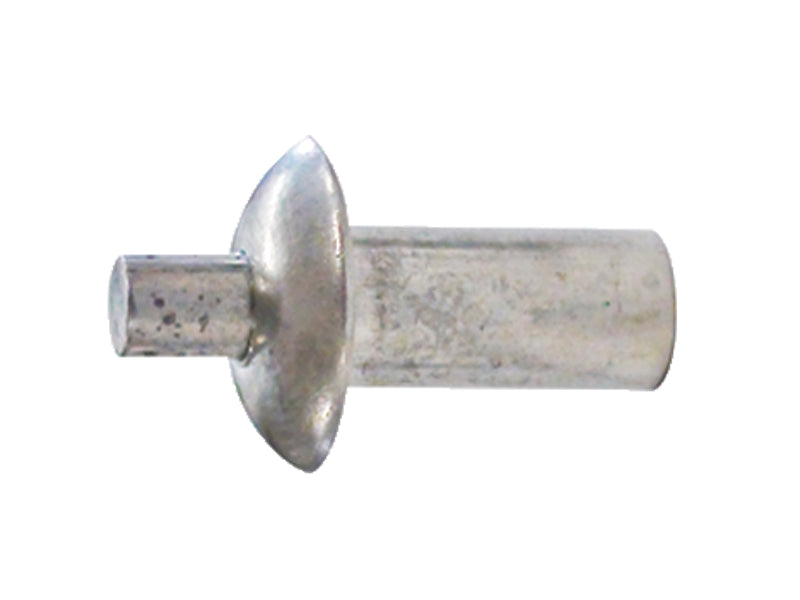

12-16 Medium – length is .531, Grip Range is .328 – .422, Head size is .500 (1.2″), Shaft is .25 (1.4″) and 38-108-12-16

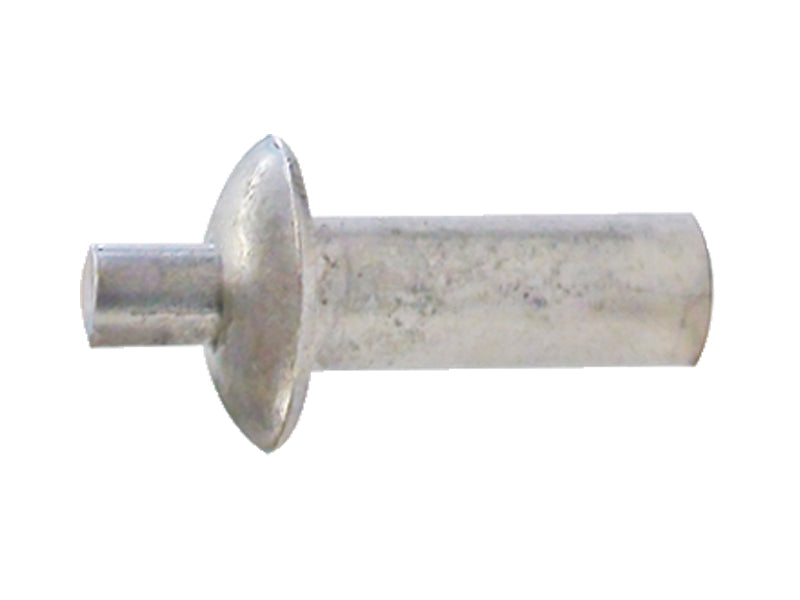

16-16 Long – length is .656, Grip Range is .453 – .547, Head size is .500 (1.2″), Shaft is .25 (1.4″) and 38-108-16-16
